Streamer and DAC
Provide two central components of your digital music system with a high-quality external power supply, provided both devices require the same DC voltage and are suitable for sharing a power supply.
PLiXiR Statement BDC Audio DC Power Supply - Dual Output
2x 5V - 6A / 2.1 mm / 2.1 mm
€1.849,00
Skip to product information
Digital source
Streaming network
Digital interfaces
One high-quality source
PLiXiR Statement BDC Audio DC Power Supply - Dual Output
€1.849,00
PLiXiR Statement BDC Dual Output – high-end audio DC power supply of reference quality
An exceptional audio system deserves a power supply designed with equal care. The PLiXiR Statement BDC is the flagship of the PLiXiR range of balanced linear DC power supplies. Two DC outputs, a combined maximum continuous current capacity of 6 A, and a highly refined power supply architecture make it the choice for those who want to provide the power foundation for their source components at PLiXiR's highest level.
The Statement BDC goes beyond replacing a standard adapter. From the specially developed Noratel Tru-Balanced transformer and three-stage noise regulation to the star+plane grounding design and Bfly Master PRO feet: electrical and mechanical refinement come together in one compact, solid power supply.
Choose from a fixed output voltage of 5, 6, 9, 12, 15, or 19 V DC. The two outputs make it possible to connect two suitable devices with the same supply voltage. Two PLiXiR Elementa DC cables, each one metre long, are included as standard.
Statement The flagship of PLiXiR DC
2 DC outputs Combined maximum of 6 A continuous
3-stage Refined noise regulation architecture
Noratel Specially developed Tru-Balanced transformer
Why the Statement BDC is the top model
The position of the Statement BDC is not determined solely by its current capacity or the number of connections. The difference lies in the complete design of the power supply: the transformer, noise regulation, internal grounding, capacitor capacity, component selection, and mechanical decoupling have all been developed as a single, cohesive design.
The Statement builds on the original Elite BDC. According to PLiXiR, major circuit refinements, over 40% more capacitor capacity, and an improved internal layout result in a further reduction in the noise floor and output impedance. Undesirable circulating ground currents are also explicitly addressed.
- Flagship of PLiXiR's balanced linear DC power supplies.
- Three-stage noise regulation architecture with refined circuits.
- Noratel Tru-Balanced transformer manufactured especially for PLiXiR.
- Proprietary star+plane grounding design and optimised internal layout.
- Over 40% greater capacitor capacity compared to the original Elite BDC design used by the manufacturer for comparison.
- Custom-specified Bfly Master PRO feet with multi-layer damping.
- Two DC outputs with a combined maximum continuous current capacity of 6 A.
- Manual assembly in Singapore and final tuning by PLiXiR founder James Soh.
A power foundation for a high-quality music system
You choose your DAC, streamer, and digital interfaces based on their capabilities and performance. With the Statement BDC, you also give their external power supply a serious place within the system design.
The starting point is a stable DC power supply with as little unwanted electrical interference as possible. Not to give the music an artificial character, but to allow the connected equipment to function under carefully controlled power supply conditions.
PLiXiR describes the intended sonic character as neutral, natural, detailed, focused, fast, and dynamic. How much added value it brings to your system depends partly on the original power supply and the sensitivity of the connected device to power supply interference.
Noratel Tru-Balanced: the heart of the Statement
The transformer is one of the most distinctive components of the Statement BDC. Noratel manufactures it according to PLiXiR's proprietary Tru-Balanced design, especially for this application.
The manufacturer cites a generously oversized transformer core, high-purity OFC copper wire, and magnetic shielding with vibration-absorbing properties. This means the design focuses not only on electrical energy transfer, but also on controlling magnetic and mechanical influences.
This transformer is therefore not a separate prestige component, but a fundamental part of the balanced power supply architecture on which the Statement BDC is built.
Three-stage noise regulation and refined internal grounding
The Statement BDC combines a three-stage noise regulation architecture with a proprietary star+plane grounding design. According to PLiXiR, the circuits and internal layout have been extensively refined to further reduce both high-frequency and low-frequency noise.
More capacitor capacity
Compared to the original Elite BDC design, PLiXiR states that the capacitor capacity has increased by more than 40%. In combination with the other circuit adjustments, the manufacturer says this is aimed at lower output impedance and better delivery of short-term current.
Star+plane grounding design
The internal return and ground currents are also part of the design. According to PLiXiR, the star+plane concept and the modified layout were developed to reduce unwanted circulating ground currents. An additional ground terminal also provides an extra connection option within a carefully planned system configuration.
PLiXiR specifies less than 1 mV RMS residual noise at the DC output.
Bfly Master PRO: mechanical refinement down to the feet
The Statement BDC stands on Bfly Master PRO feet that are manufactured in Germany and specially tailored to PLiXiR's specifications.
The feet use multi-layer damping with different materials, aimed at different vibration frequencies. According to PLiXiR, they are mounted separately and without tension, so that the chosen decoupling construction can do its job.
The enclosure follows a similar approach: an extruded aluminium chassis with a wall thickness of 5 mm and thick metal top and bottom plates forms a rigid construction. Weighing 5.5 kg, the Statement BDC is a substantial device despite its compact dimensions.
Two DC outputs, one high-quality power supply
The Dual Output version makes it possible to power two suitable components from a single Statement BDC. This can be a tidy solution for a digital source combination or two suitable components of a streaming setup.

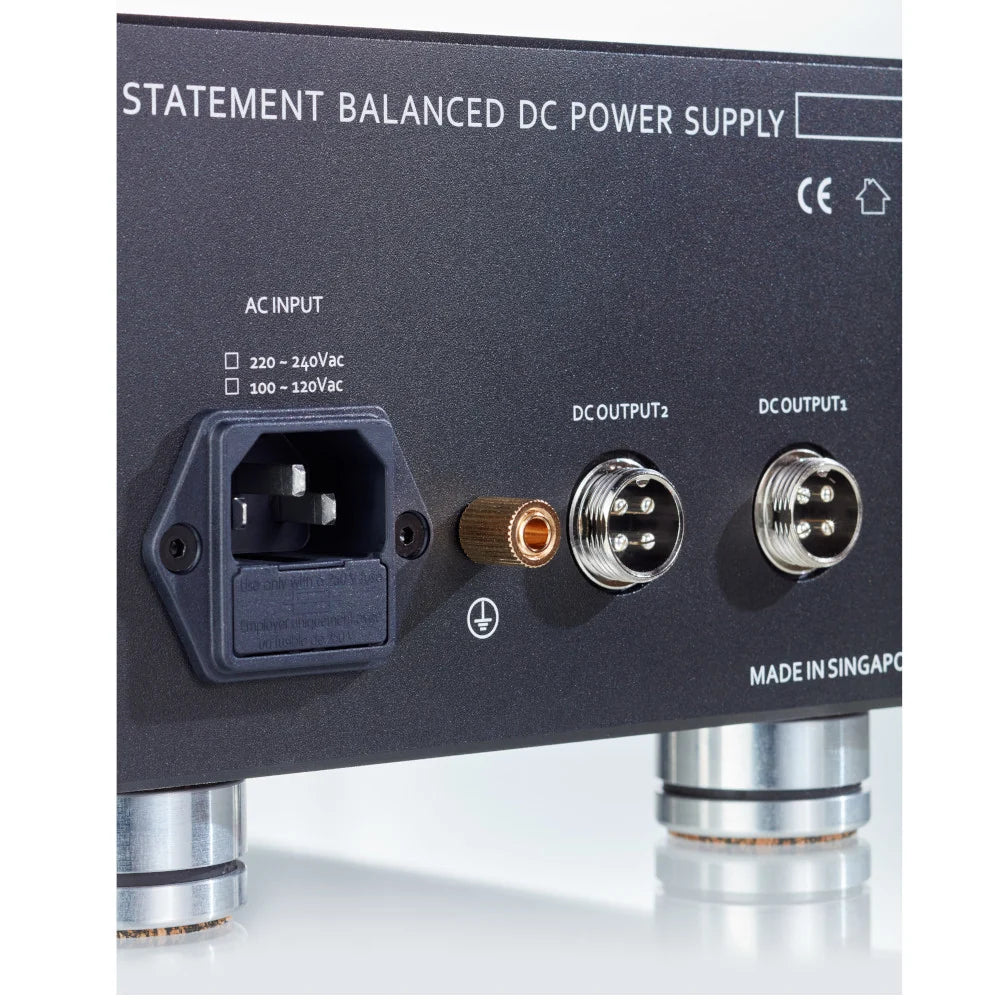

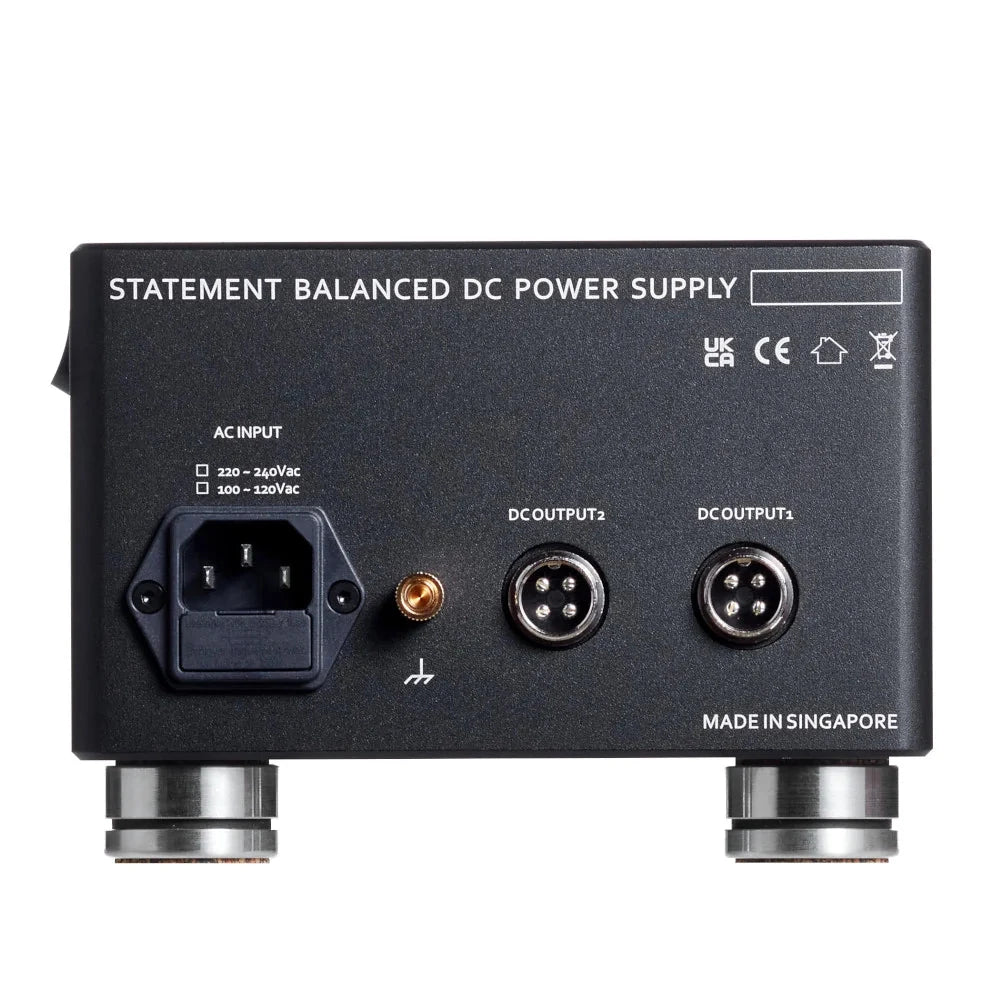

You use one mains connection and a separate DC cable for each device. The two connected devices must be compatible with the chosen fixed output voltage and together remain within the available current capacity.
Mains connection Suitable AC mains cable PLiXiR Statement BDC
DC output 1 DC cable 1 Suitable component 1
DC output 2 DC cable 2 Suitable component 2
The maximum continuous current capacity is 6 A for both outputs together: output 1 + output 2 = maximum 6 A.
For which equipment is the Statement BDC suitable?

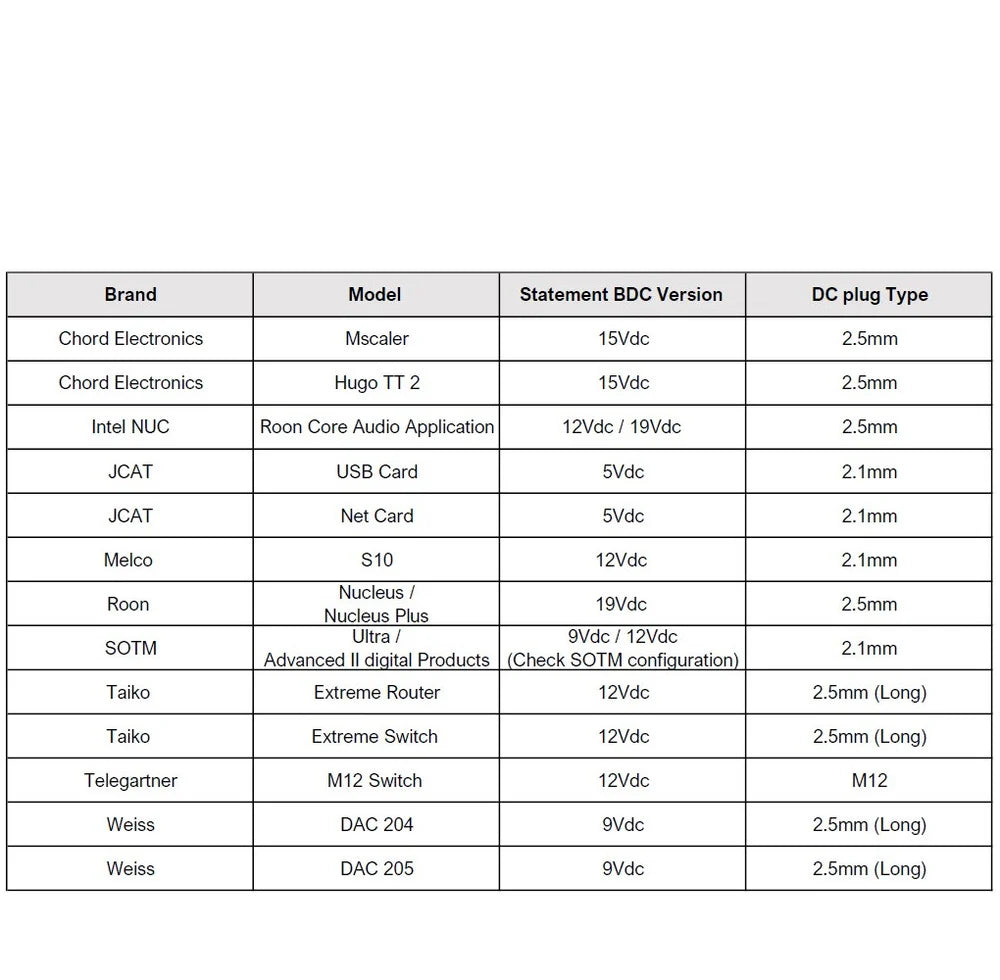

The Statement BDC is intended for equipment with a suitable external DC power input. The combinations below are examples of applications; exact compatibility must always be checked for each device.
Network switch and media converter
A tidy power supply solution for two suitable network components. Check the voltage and current requirements of both devices separately.
DAC and digital interface
Consider a suitable DAC with an externally powered USB interface or reclocker. The power requirements and the mutual signal and ground connections determine whether the combination is suitable.
Streamer or music server
You do not need to use both outputs. A single suitable device can also be connected. If the current requirement is higher, confirm that the allowed load of the individual connection and DC cable is sufficient.
Voltage variants and current capacity
You choose the Statement BDC with the fixed output voltage that suits your equipment. It is not a power supply with two freely adjustable output voltages. The power ratings below are calculated as voltage multiplied by the maximum combined continuous current of 6 A.
| Fixed output voltage | Combined continuous current | Calculated DC capacity |
|---|---|---|
| 5 V DC | Maximum 6 A | 30 W |
| 6 V DC | Maximum 6 A | 36 W |
| 9 V DC | Maximum 6 A | 54 W |
| 12 V DC | Maximum 6 A | 72 W |
| 15 V DC | Maximum 6 A | 90 W |
| 19 V DC | Maximum 6 A | 114 W |
Two Elementa DC cables included as standard
The Statement BDC is supplied with two PLiXiR Elementa DC cables, each one metre long. For the device end, the manufacturer offers a choice of 2.1 mm and 2.5 mm DC plugs, including a combination of both. Other plug types are available on request.
The plug choice must be tailored to each device. The designation 2.1 or 2.5 mm alone is not sufficient to establish full compatibility: also check the other dimensions and polarity.
Optional Statement DC cable upgrade
PLiXiR offers the Statement DC cable as an optional upgrade over the standard Elementa cable. You can upgrade one device connection or replace both cables.
Agree on the exact cable version, connectors, and length in advance. An optional cable is only included when it is explicitly mentioned with the offered version or bundle.
Hand-built in Singapore
PLiXiR assembles its products by hand in Singapore. According to the manufacturer, control over PCB assembly and final assembly makes it possible to carefully monitor the execution and tuning.
The Statement BDC uses selected components, including capacitors with very low impedance, high-current connectors, and high-purity copper cabling. The final sonic tuning is carried out by founder James Soh.
This makes the Statement not only a more substantial power supply, but a fully developed flagship in which electrical architecture, material selection, and mechanical construction come together.
Technical specifications
| Specification | PLiXiR Statement BDC Dual Output |
|---|---|
| Product type | Balanced linear DC power supply for suitable audio equipment |
| Positioning | Flagship within the PLiXiR DC power supply range |
| Number of DC outputs | 2 |
| Maximum continuous current capacity | 6 A combined: output 1 + output 2 |
| Fixed output voltages | 5 / 6 / 9 / 12 / 15 / 19 V DC; depending on the chosen version |
| Individually adjustable voltages | No; the standard version has one chosen fixed output voltage |
| Specified residual noise | Less than 1 mV RMS at the DC output |
| Noise regulation | Three-stage architecture |
| Transformer | Specially manufactured Noratel transformer according to PLiXiR Tru-Balanced design |
| Transformer construction | Oversized core, high-purity OFC copper wire, and magnetic shielding with vibration-absorbing properties |
| Internal grounding | PLiXiR star+plane design |
| Additional ground provision | Ground terminal present |
| Capacitor capacity | According to PLiXiR, over 40% greater than the original Elite BDC design |
| Feet | Custom-specified Bfly Master PRO with multi-layer damping |
| Enclosure | Extruded aluminium enclosure with 5 mm wall thickness and thick metal top and bottom plates |
| Dimensions according to manufacturer | 16 × 23 × 11.5 cm; height including feet |
| Weight | 5.5 kg |
| European mains voltage variant | 220–240 V AC |
| Other mains voltage variant | 100–120 V AC; separate version |
| Included DC cables | 2 × PLiXiR Elementa DC Power Cable, each 1 metre |
| Standard device plug options | 2.1 mm / 2.1 mm, 2.5 mm / 2.5 mm, or 2.1 mm / 2.5 mm |
| Other plug types | On request |
| Optional DC cable upgrade | PLiXiR Statement DC cable; agree on the exact version |
| Assembly | Hand-built in Singapore |
Frequently asked questions
Why choose the Statement BDC?
The Statement is the flagship of the PLiXiR DC series. It combines a specially developed Noratel transformer, three-stage noise regulation, refined internal grounding, extensive capacitor capacity, and Bfly Master PRO feet with two DC outputs and a maximum combined continuous current of 6 A.
Does each output deliver 6 A?
No. PLiXiR explicitly states that output 1 and output 2 together deliver a maximum of 6 A continuously.
Can I use two different voltages?
Not with the standard version described here. You choose one fixed output voltage of 5, 6, 9, 12, 15, or 19 V DC. Both connected devices must be compatible with that chosen voltage.
Can I connect only one device?
You do not need to use both outputs. Do check that the chosen voltage, plug, polarity, and allowed load of the connection and cable suit the device.
Which DC cables are included?
Two PLiXiR Elementa DC cables, each one meter long. The manufacturer offers 2.1 mm and 2.5 mm device plugs, as well as combined versions.
Does 6 A automatically make my device more powerful?
No. The current capacity indicates the maximum continuous current the power supply can provide. The connected device draws only the current it needs. The supply voltage must, however, match the device exactly.
Is this a mains voltage conditioner?
No. The Statement BDC provides low-voltage direct current for suitable equipment with an external DC input. It is not intended as a direct power supply for devices with their own mains voltage input.
A Statement, tailored to your audio system
The PLiXiR Statement BDC is designed for those who consider the external power supply to be a full-fledged component of their high-end audio system. The flagship combines extensive electrical refinement with a carefully developed mechanical design.
Send us the brand and model of your device or both components, preferably with a photo of the original adapters. We will help you select the correct voltage variant, suitable DC plugs, and appropriate cable configuration.
